Denali D3 BMW GS additional light kit

The DENALI CANsmart™ D3 kit for BMW R 1250 / 1200 GS / Adventure consists of:

- DENALI CANsmart GEN 2.0 Plug-n-Play Controller

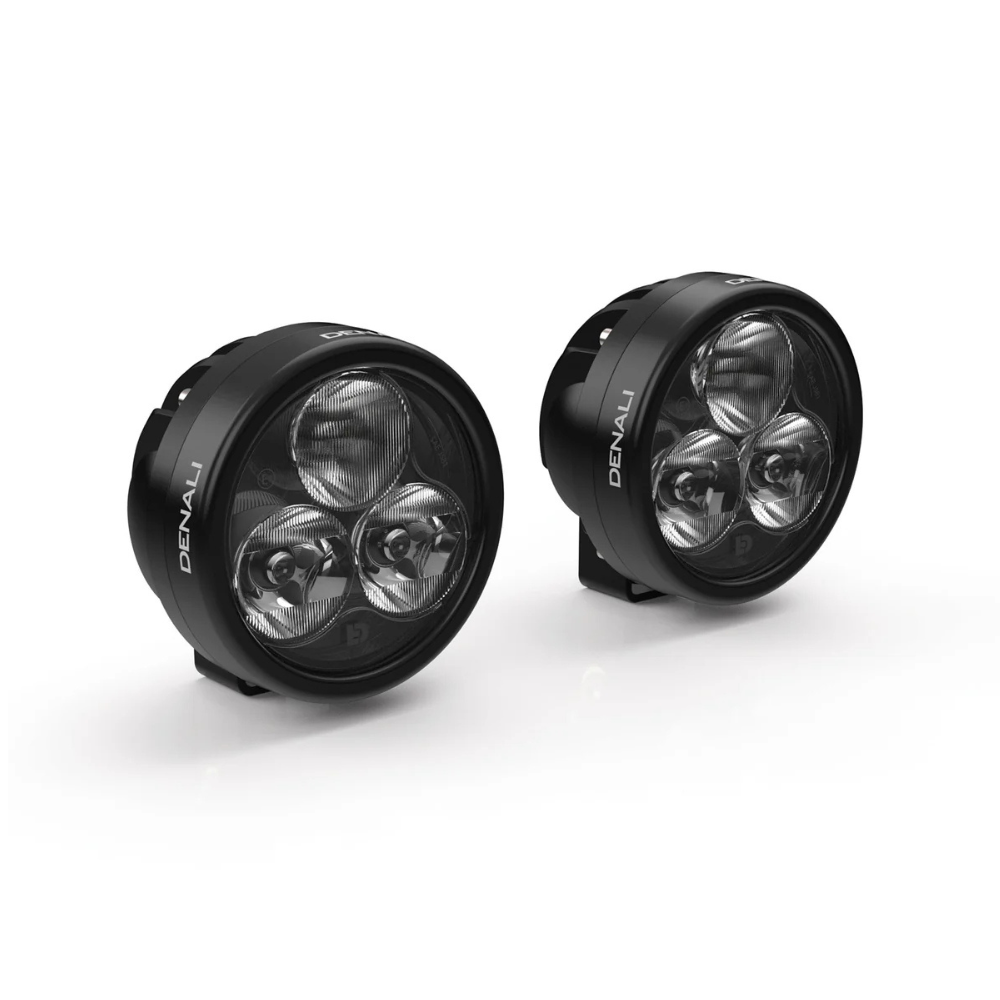

- DENALI D3 TriOptic LED additional lighting - per unit (2x)

The new D3 LED lights build on a decade of DENALI innovation to deliver the best-performing 36-watt driving light on the market. The D3 driving light features our signature TriOptic™ beam pattern system that includes a spot and hybrid driving lens with each light pod. Unlike previous TriOptic™ lights, the D3 hybrid driving light meets ECE and SAE standards to deliver an impressive street-legal high beam in North America and the European Union. But what if you're not concerned with street-legal precision and just want off-road extravaganza? We've got you covered, too! The D3 spot lens was designed for a maximum beam distance of over 1,900 feet at 1 lux (per pair). No other 36-watt light comes close. The beam pattern is so impressive, it outshines the highest-performing competitor lights that are twice their size.

The D3 is also available in SAE and ECE certified fog light versions for drivers looking for a true homologated fog light beam that is super wide and has a sharp horizontal "cut-off"

Features

TriOptic™ Lens System (spot and hybrid lenses included in each module)
Best-in-class hybrid headlights and beams for road use (SAE/DOT and ECE certified)
Cree High Intensity Series LEDs producing 2100 lumens per pod
3-wire DataDim™ smart dimming technology (compatible with all DENALI dimming controllers)
DrySeal™ Submersible Waterproof lighting can withstand the most extreme environments.
Impact PC™ Polycarbonate bezels will not crack, discolor, or corrode like traditional aluminum bezels.
LiveActive™ thermal management keeps LEDs cool, preventing brightness loss due to overheating.
Low profile mounting bracket with stainless steel hardware included
SAE/DOT and ECE certified additional hybrid driving lens included (spot lens installed)
Amber and selective yellow lenses available (sold separately)
Beam performance (pair)

Spot beam
Beam distance (at 1 lux): 582 meters (1910 feet)
Beam width (at 1 lux): 30 meters (100 feet)

Combined beam (1 spot, 1 hybrid)
Beam distance (at 1 lux): 463 meters (1520 feet)
Beam width (at 1 lux): 53 meters (175 feet)

Hybrid beam
Beam distance (at 1 lux): 320 meters (1050 feet)
Beam width (at 1 lux): 69 meters (225 feet)

Specifications (single module)

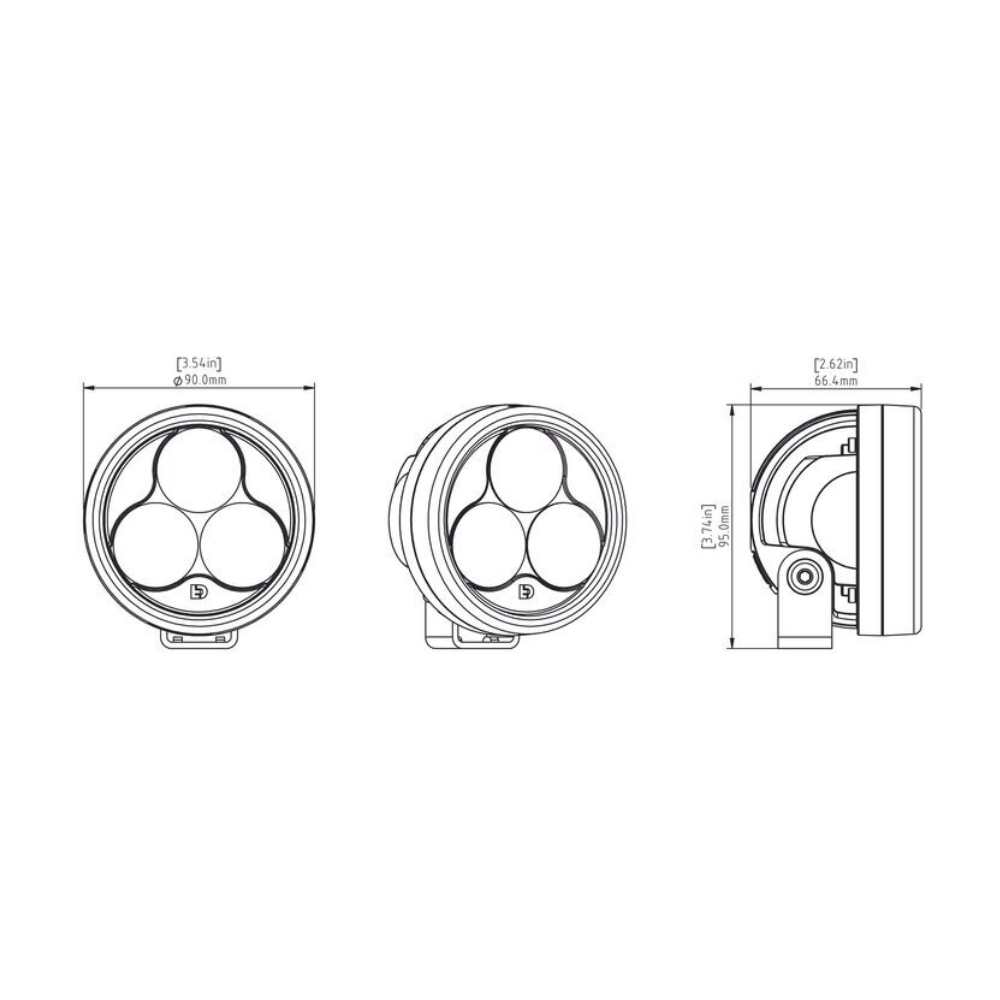

Pod Size: 90mm (3.5") diameter x 66mm (2.62") deep
LED: (3x) 11 watt Cree XP-P LED
Power consumption: 36 watts (3 amps)
Lumens: 2100
DataDim™ Compatible: Yes
Operating voltage: 9-32V DC
IP67 waterproof and submersible
Hybrid Lens Certifications: SAE/DOT J581 & ECE R112
Spot Lens Certifications: ECE R112

Harness the flexibility and intelligence of your motorcycle's CAN-bus electrical system to make accessory installation significantly easier with the new and improved DENALI CANsmart™ GEN II Controller. The DENALI CANsmart™ Controller offers plug-n-play installation and integrated control of up to four accessories to enable dozens of customizable settings that can be controlled directly from the CANsmart™ Accessory Manager software.

The four CANsmart circuits are pre-programmed to connect and independently control two sets of DENALI lights, a SoundBomb horn and the B6 auxiliary brake light.

Gen II - More features, more power, more versatility

Unlike the CANsmart Gen I, the Gen II's four circuits can provide 10 amps of continuous power, and each circuit can be configured to run any type of accessory. The maximum power draw for the entire unit remains 30 amps continuous. The Gen II also features two new auxiliary light settings. You can now modulate your auxiliary lights for better visibility and set your left and right side marker lights to turn off independently when you activate the corresponding turn signal.

Features

High/Low Beam Sync - Set the low beams to cycle between a programmable high/low beam setting using the factory high beam switch.
ON/OFF and Dim - Independently control two sets of lights ON/OFF and change the intensity level (day or night) from the vehicle's original switches.
Headlight Dimming - Set your auxiliary lights to dim to increase your visibility to other drivers.
Flash to Pass - Need to get someone's attention? Press the high beam switch three times and your auxiliary lights will flash three times quickly.
Turn Signal Override - This feature overrides the corresponding auxiliary light when you activate your turn signal, preventing strong auxiliary lights from overriding your turn signal.
Hazard Reverse Flash - This feature causes your auxiliary lights to flash in reverse to your hazard lights, increasing visibility in the event of an emergency on the road.
Plug & Play Horn Installation - Quickly and easily connect high-power aftermarket horns like our SoundBomb™ without having to add an additional harness or relay.
Strobe with Horn - With this feature selected, the CANsmart™ software will automatically strobe your auxiliary lights when you sound your horn. This feature works whether you have the factory horn or the SoundBomb™ horn installed.
Smart Brake Technology - CANsmart™ reads real-time vehicle speed to activate your brake light during deceleration before you even touch the brake. You can adjust the sensitivity and minimum speed at which the smart brake feature will activate.
Flash Pattern Braking - CANsmart™ provides four different flash patterns that make our super-bright auxiliary brake lights even more noticeable to motorists behind you. You can set the auxiliary brake lights to flash only under hard braking, flash continuously when you brake, or flash four times quickly and then remain steady (California-legal flash rate).
Circuit Function Selector - The CANsmart software's Circuit Function Selector allows you to operate any accessory of your choice on any of the four circuits. Click on a circuit icon to open the drop-down menu and select from the list of available circuit functions.
Switched Power Source - The CANsmart™ provides a universal "accessory" option that simply gives you clean, switched 12V power. This means any accessory you connect to this circuit will turn on and off with your ignition. Time Delay - You can also set accessories on this circuit to have a time delay. This will keep them powered for up to 30 seconds after you turn off your bike. On-Board Power - The "accessory" circuit option is great for powering your GPS, phone, heated gear, or other electronics.

COMPATIBILITY

BMW R 1250 GS Adventure (2019-2023)
BMW R 1250 GS (2019-2023)

BMW R 1200 GS (2017-2018)
BMW R 1200 GS (2013-2016)
