Denali Lighting Controller BMW R 1250 GS

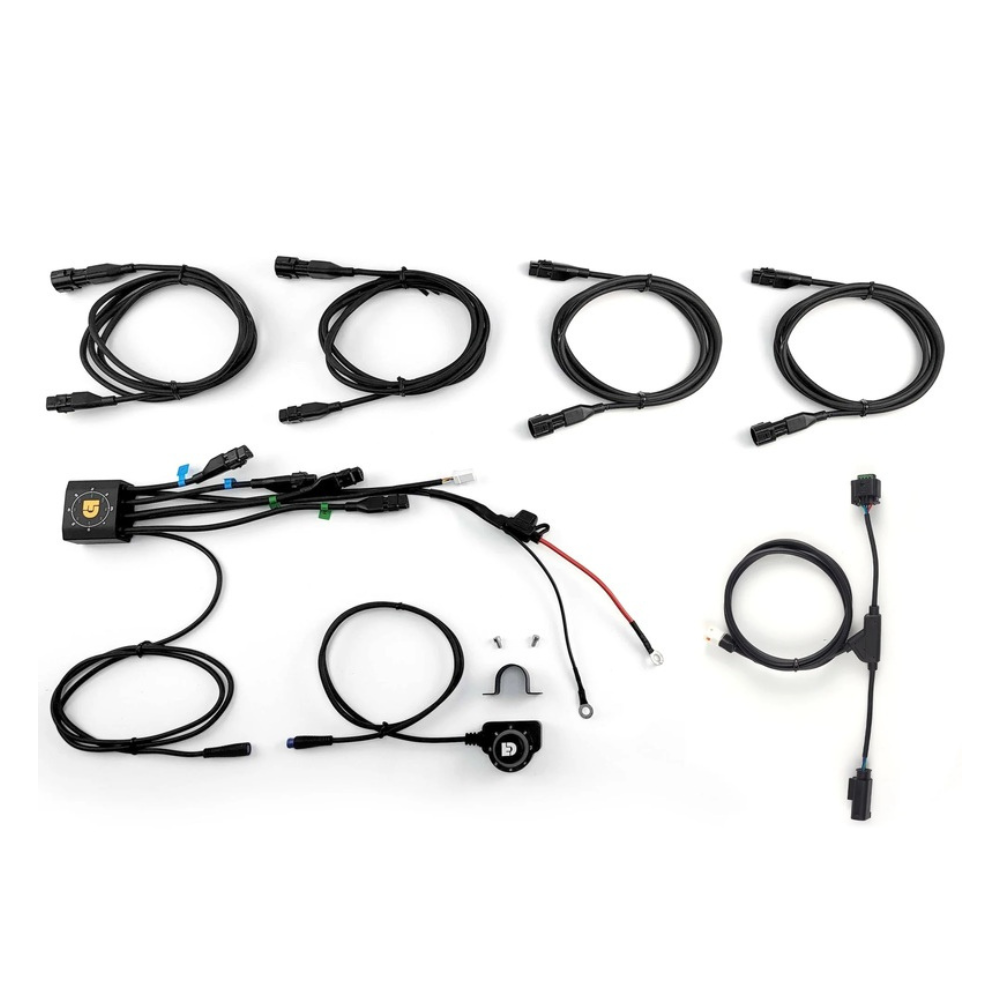

This DialDim lighting controller has the same features and settings as the universal controller, but includes a plug-and-play wiring adapter to allow for effortless installation on the BMW R1250 GS and other R1250 series motorcycles. Simply connect it to your battery and a socket under your seat to unlock unique flash functions and independent dimming control for two sets of DENALI driving lights.

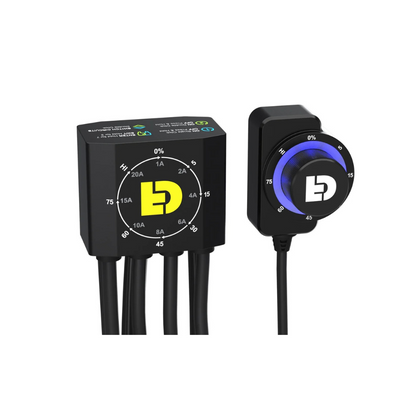

DialDim™ Lighting Controller

Allows for a complete solution with easy control of all lighting functions.

Independently turn on/off and dim two additional sets of lights from a single switch.

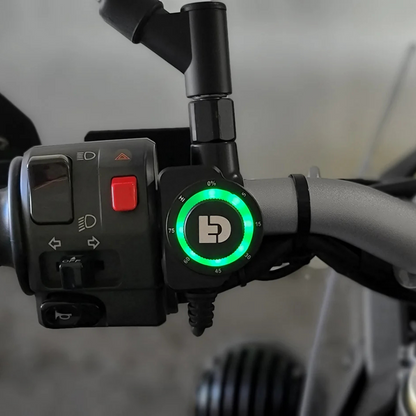

LED halo switch displays your exact settings
Unlock smart flash functions that can cancel your auxiliary lights with your turn signal, flash your auxiliary lights like a turn signal, or flash your lights when you sound your horn.
On/Off & Dim
Independently control two sets of lights on/off and intensity level using the DialDim™ switch. The blue halo controls light set 1 and the green halo controls light set 2. Double-click to switch between the two circuits.

Up/down synchronization
Your auxiliary lights will automatically switch from your current setting to full intensity with the factory high beam switch. Simply connect the blue input wire to your vehicle's high beam circuit to activate this feature.

Stealth mode
A smart 0% dimmer setting on the switch allows your lights to be "off" under normal driving conditions, but they will increase to 100% intensity with your vehicle's high beam switch. In this mode, the lights also respond to turn signal signals and the horn, but they remain off when they are not detected.

Cancellation with turn signals
When activated, the main lights (blue circuit 1) will turn off in sync with your stock turn signal. Simply connect the yellow and orange input wires to your vehicle's turn signal circuit to activate this feature.

Flash like blinker
When this feature is enabled, your lights (green circuit 2) will flash in sync with your stock turn signals. Simply connect the yellow and orange input wires to your vehicle's turn signal circuit to enable this feature.

Strobe with horn
When this feature is enabled, the auxiliary lights on both circuits will flash at 4 Hz when you sound your horn. Simply connect the green input wire to your vehicle's horn circuit to enable this feature.

Electronic fuse circuits
Both lighting circuits are electronically fused and can be adjusted directly from the switch itself! The halo lights up red to alert you when a circuit fuse is tripped.

Voltage indicator
When the vehicle is started, the switch halo flashes green to indicate a healthy battery voltage, or red to indicate a battery voltage below 11.8 volts.

Low voltage cut-off
If the battery voltage drops below 10.8V, the lights will not turn on, preventing you from being stranded. The switch halo flashes 4 red LEDs to indicate the low voltage condition.

COMPATIBILITY

BMW R 1250 GS Adventure (2019-2023)
BMW R 1250 GS (2019-2023)
