The DENALI CANsmart™ D3 kit for the BMW R 1250 / 1200 GS / Adventure consists of:

- DENALI CANsmart GEN 2.0 Plug-n-Play Controller

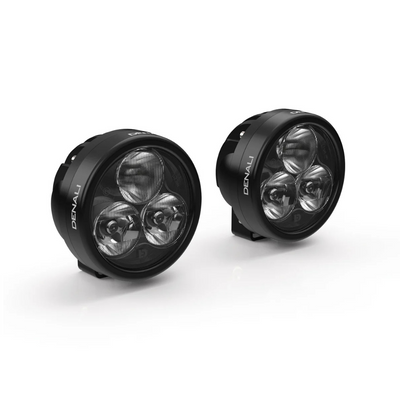

- DENALI D3 TriOptic LED auxiliary light - per unit (2x)

The new D3 LED lights are based on a decade of DENALI innovation to deliver the highest-performing 36-watt driving light on the market. The D3 driving light features our signature TriOptic™ beam system, which includes a spot and hybrid driving lens with each light pod. Unlike previous TriOptic™ lights, the D3 hybrid driving light complies with ECE and SAE standards to provide an impressive road-legal driving light in North America and the countries of the European Union. But what if you are not concerned with street-legal precision and simply want extreme off-road performance? We have you covered too! The D3 spot lens was designed for a maximum beam distance of over 1,900 feet at 1 lux (per pair). No other 36-watt light comes close. The beam is so impressive that it outperforms lights from the top competitors that are twice as large.

The D3 is also available in an SAE- and ECE-certified fog light version for riders seeking a genuine, road-legal, super-wide fog beam with a sharp horizontal “cutoff”

Features

TriOptic™ lens system (spot and hybrid lenses included with each module)
Best-in-class road-legal spot and hybrid beams (SAE/DOT- and ECE-certified)
High-intensity Cree series LEDs producing 2,100 lumens per pod
3-wire DataDim™ smart dimming technology (compatible with all DENALI dimming controllers)
DrySeal™ Submersible Waterproof lighting can withstand the most extreme environments.
Impact PC™ Polycarbonate bezels do not crack, fade, or corrode like traditional aluminum bezels.
LiveActive™ thermal management keeps the LEDs cool, preventing brightness loss caused by overheating.
Low-profile mounting bracket with stainless steel hardware included
Additional SAE/DOT- and ECE-certified hybrid driving lens included (spot lens installed)
Amber and selective yellow lenses available (sold separately)
Beam performance (pair)

Spot beam
Beam distance (at 1 lux): 582 meters (1,910 feet)
Beam width (at 1 lux): 30 meters (100 feet)

Combined beam (1 spot, 1 hybrid)
Beam distance (at 1 lux): 463 meters (1,520 feet)
Beam width (at 1 lux): 53 meters (175 feet)

Hybrid beam
Beam distance (at 1 lux): 320 meters (1050 feet)
Beam width (at 1 lux): 69 meters (225 feet)

Specifications (single module)

Pod size: 90 mm (3.5") in diameter x 66 mm (2.62") deep
LEDs: (3x) 11-watt Cree XP-P LEDs
Power consumption: 36 watts (3 amps)
Lumens: 2100
DataDim™ compatible: Yes
Operating voltage: 9-32V DC
IP67 waterproof and submersible
Hybrid lens certifications: SAE/DOT J581 & ECE R112
Spot lens certifications: ECE R112

Harness the flexibility and intelligence of your motorcycle's CAN bus electrical system to greatly simplify accessory installation with the new and improved DENALI CANsmart™ GEN II Controller. The DENALI CANsmart™ Controller offers plug-and-play installation and integrated control of up to four accessories, enabling dozens of customizable settings that can be controlled directly from the CANsmart™ Accessory Manager software.

The four CANsmart circuits are preprogrammed to independently connect and control two sets of DENALI lights, a SoundBomb horn, and the B6 auxiliary brake light.

Gen II - More features, more power, more versatility

Unlike the CANsmart Gen I, all four Gen II circuits can provide a continuous 10 amps of power, and each circuit can be configured to operate any type of accessory. The maximum total power draw of the entire unit remains 30 continuous amps. The Gen II also offers two new auxiliary light settings. You can now modulate your auxiliary lights for improved visibility and set your left and right side lights to turn off independently when you activate the corresponding turn signal.

Features

High/Low Beam Synchronization - Set the low beams to switch between a programmable high-beam/low-beam setting using the original high-beam switch.
ON/OFF and Dim - Independently control two sets of lights ON/OFF and adjust the brightness level (day or night) using the vehicle's original switches.
Light Modulation - Set the auxiliary lights to modulate to increase your visibility to other motorists.
Flash to Pass - Need to get someone's attention? Press the high-beam switch three times and your auxiliary lights will flash rapidly three times.
Turn Signal Override - This function overrides the corresponding auxiliary light when you activate your turn signal, preventing the powerful auxiliary lights from overpowering your turn signal.
Hazard Reverse Flash - This function makes your auxiliary lights flash opposite to your hazard lights, increasing visibility in an emergency on the road.
Plug & Play Horn Installation - Quickly and easily connect high-powered aftermarket horns such as our SoundBomb™ without having to add an extra wiring harness or relay.
Strobe with Horn - With this function selected, the CANsmart™ software will automatically strobe your auxiliary lights when you sound your horn. This function works whether you have installed the factory horn or the SoundBomb™ horn.
Deceleration-Activated “Smart Brake” Technology - The CANsmart™ reads the vehicle’s speed in real time to activate your brake light during deceleration before you even touch the brake. You can adjust the sensitivity and minimum speed at which the smart braking function will activate.
Flash Pattern Braking - The CANsmart™ provides four different flash patterns that make our super-bright auxiliary brake lights even more noticeable to motorists behind you. You can set the auxiliary brake lights to flash only during hard braking, flash continuously when you brake, or flash rapidly four times and then remain steady (California legal flash rate).
Circuit Function Selector - The CANsmart software’s circuit function selector lets you operate any accessory of your choice on any of the four circuits. Click a circuit icon to open the drop-down menu and make your selection from the list of available circuit functions.
Switched Power Source - The CANsmart™ provides a universal “accessory” option that simply gives you clean 12V switched power. This means that any accessory you connect to this circuit will turn on and off with your ignition. Delay Timer - You can also set the accessories on this circuit to have a delay timer. This will keep them powered for up to 30 seconds after you turn off your bike. Onboard Power - The “accessory” circuit option is ideal for powering your GPS, phone, heated gear, or any other electronic device.
