The DENALI DL9 auxiliary light kit for BMW F 900 GS / Adventure from 2024 to 2025 clear, yellow or amber lens, DialDim or CANsmart.

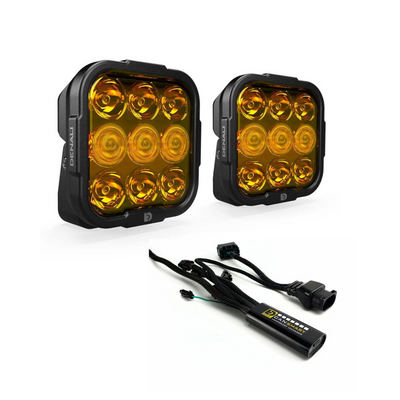

- 2x DENALI DL9 lights
- CANsmart harness or DialDim lighting controller

15,300 Lumen HiDrive LED per Pair – Premium CREE LEDs powered at 8 watts each deliver a remarkably powerful beam from a robust 9-LED square housing.

Oversized TIR Optics - Perfected Hybrid Driving Beam - Our proprietary TIR optics distribute light output more efficiently than traditional reflector optics, providing our driving beam with unmatched distance and width from the most compact housing possible.
Plug-&-Play DataDim™ Dimming – Our 3-wire design utilizes dedicated dimming wiring for maximum reliability and a plug-and-play connection to all DENALI lighting harnesses, DialDim, and CANsmart controllers.

ECE Compliant Driving Light – Our hybrid driving light is ECE certified for use as main or auxiliary high beams in the European Union. Yellow and amber lenses are not compliant for use as driving lights.

Specifications (single | pair):
LEDs: Cree XPL HI (8W each)
Watts: 72W | 144W
Amp Draw: 6A | 12A
Raw Lumens: 7,650 | 15,300
Beam Distance: 1380' (421m) | 1835' (560m)
Beam Width: 360' (110m) | 478' (146m)
Connector: 3-wire DataDim Compatible DT
Color Temperature: 6000K
Operating Voltage: 9-32 VDC
Pod Size: 4.5" x 4.5" Square x 2" Deep
Pod Weight: 2.2 lbs | 4.4 lbs
IP Rating: IP68 & 69K waterproof, submersible & high-pressure spray proof
Beam Certification: ECE R149 Driving Beam (Auxiliary High Beam)
EMC: R10, CISPR 25, CE, UKCA compliant

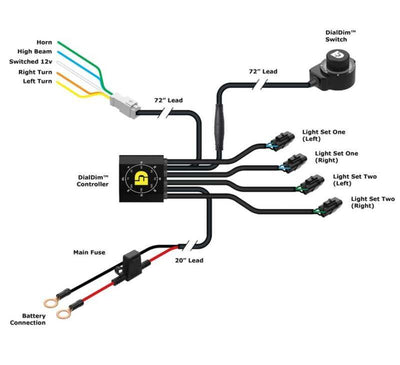

DialDim
Controls 1 or 2 sets of lights with dimmer option
Universal, easy to install

CANsmart
Manages multiple accessories (lights, horn, etc.) from integrated handlebar controls
Smart controller

Mounting possible with the Crash Bar Mount

COMPATIBILITY

BMW F 900 GS Adventure (2024-2025)
BMW F 900 GS (2024-2025)
